| الاسم التجاري: | UCER |
| رقم الطراز: | EP100 / EP150 / EP200 / EP250 / EP300 |
| الـ MOQ: | 100 متر |
| السعر: | قابل للتفاوض |
| وقت التسليم: | 10-30 يوما |
| شروط الدفع: | خطاب الاعتماد، د/ف، تي/تي |

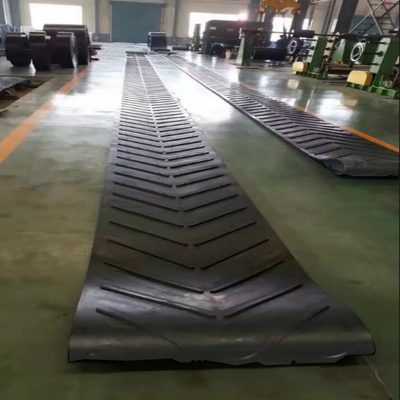

Herringbone pattern black conveyor belting designed for efficient material handling with widths ranging from 300mm to 800mm. This specialized belting prevents material slippage on inclined conveyors up to 40 degrees.
| Variety | Standards and Main Indicators |
|---|---|
| Ordinary steel cord conveyor belt | GB/T9770-2001 |
| Flame-retardant steel cord conveyor belt | MT668-1997 |
| General flame-retardant steel cord conveyor belt | MT668-1997 |
| Heat-resistant steel cord conveyor belt | HG2297-92 |
| Wear-resistant steel cord conveyor belt | Shaoboer wear amount ≤90mm³ |
| Acid, alkali and oil resistant steel cord conveyor belt | HG4-846 |
| Cold-resistant steel cord conveyor belt | Brittleness temperature -40℃ |

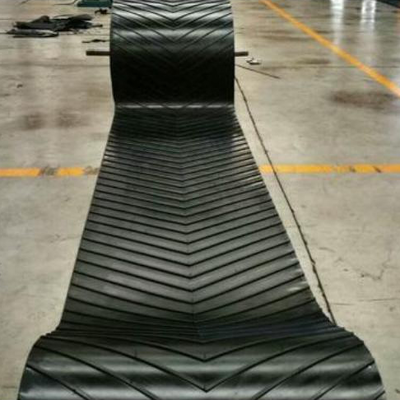

The belt surface features "herringbone" patterns higher than the belt body, available in open or closed configurations. Patterns are classified as high, medium, or low types.
Applications: Suitable for conveying powdery, granular, and small materials with inclination angles ≤40 degrees. Also effective for bagged materials.
Features striped patterns higher than the belt body, available in high, medium, and low types with sparse or dense arrangement spacing.
Applications: Ideal for horizontal transportation of packages with inclination angles ≤30 degrees. When grooved, can serve as an alternative to herringbone patterns.
Includes grain patterns that are either raised above or recessed into the belt surface. Pits can be designed as square holes, prismatic shapes, or cloth patterns.
The pattern conveyor belt consists of two main components: the base belt and the pattern surface.
|
|
